32-2110A-0100
Pneumatiske aktuatorer

Parker 32-2110A-0100

SKU: 4040
På lager

Vælg tilstand

Tilstand
Pris
Mængde
Handling
Used
Exkl. moms: €45,00 (1 tilgængelig)
Inkl. moms: €54,45
1
Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Garantiinformation

Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.
Garanti Perioder efter Tilstand
Ny 12 måneder
Renoveret DOA
Brugt DOA
We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

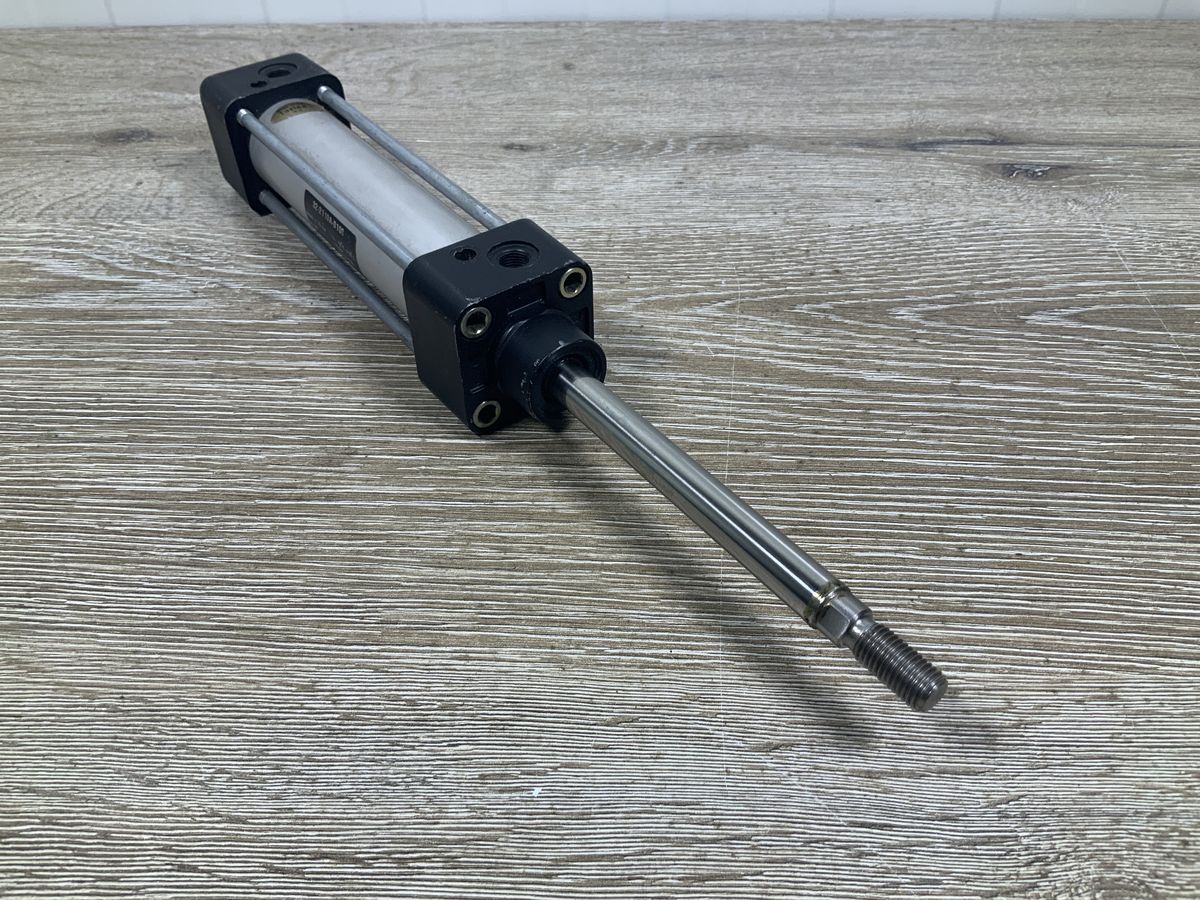

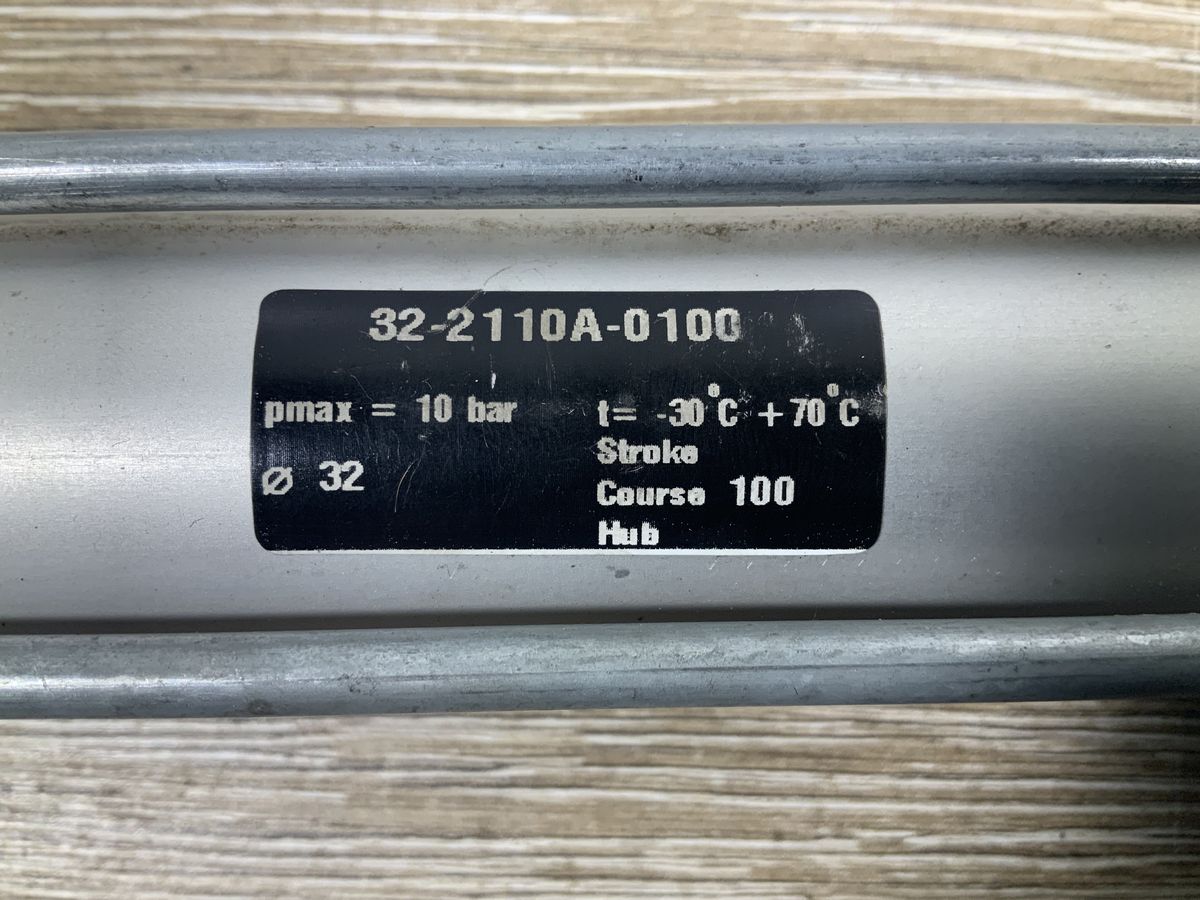

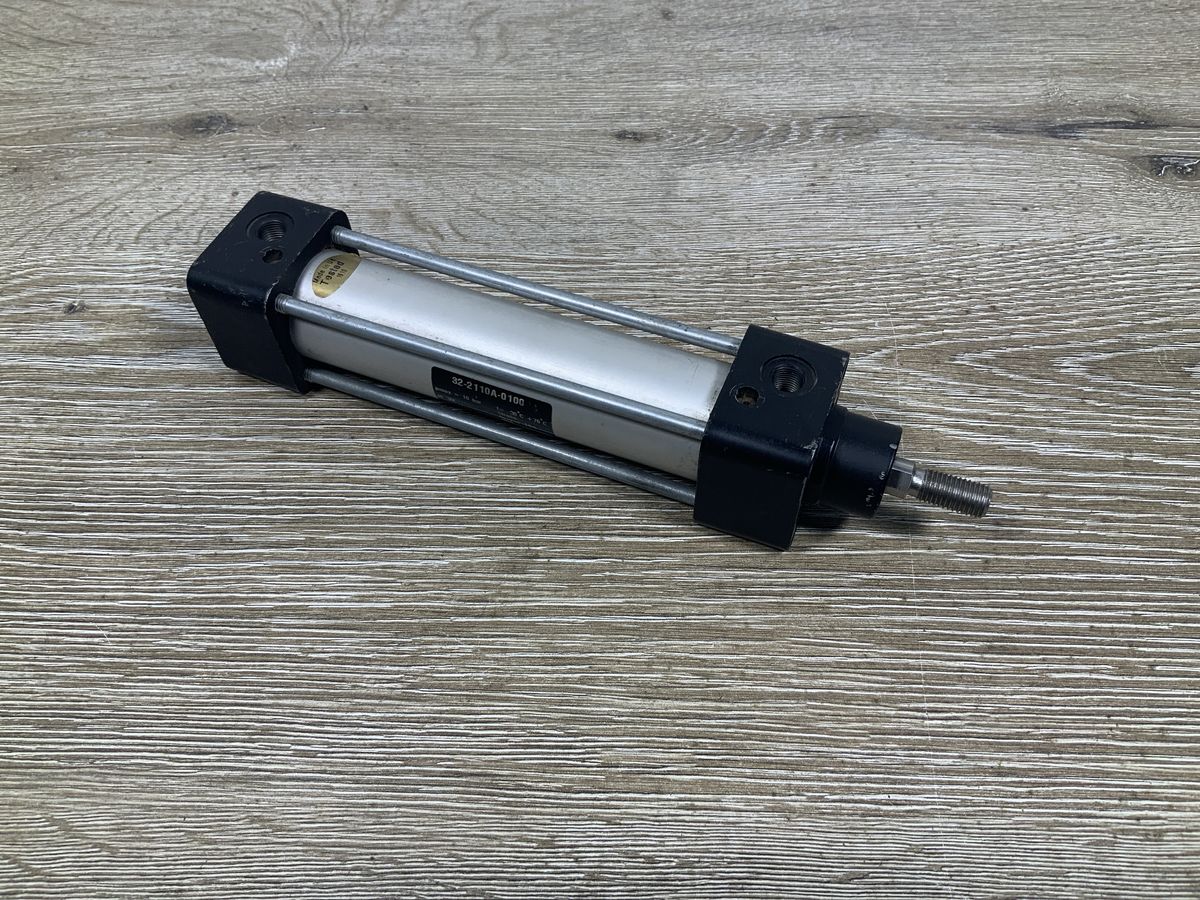

The Schrader Bellows 32-2110A-0100 is an ISO 6431 tie-rod pneumatic cylinder designed for industrial linear motion applications. It features a 32 mm bore diameter and a 100 mm stroke length with adjustable end-position cushioning. Rated for working pressures up to 10 bar across an operating temperature range of -30°C to +70°C.

Specifications – 32-2110A-0100

Parameter Specification
Bore Diameter 32 mm
Stroke Length 100 mm
Maximum Operating Pressure 10 bar
Operating Temperature Range -30 °C to +70 °C

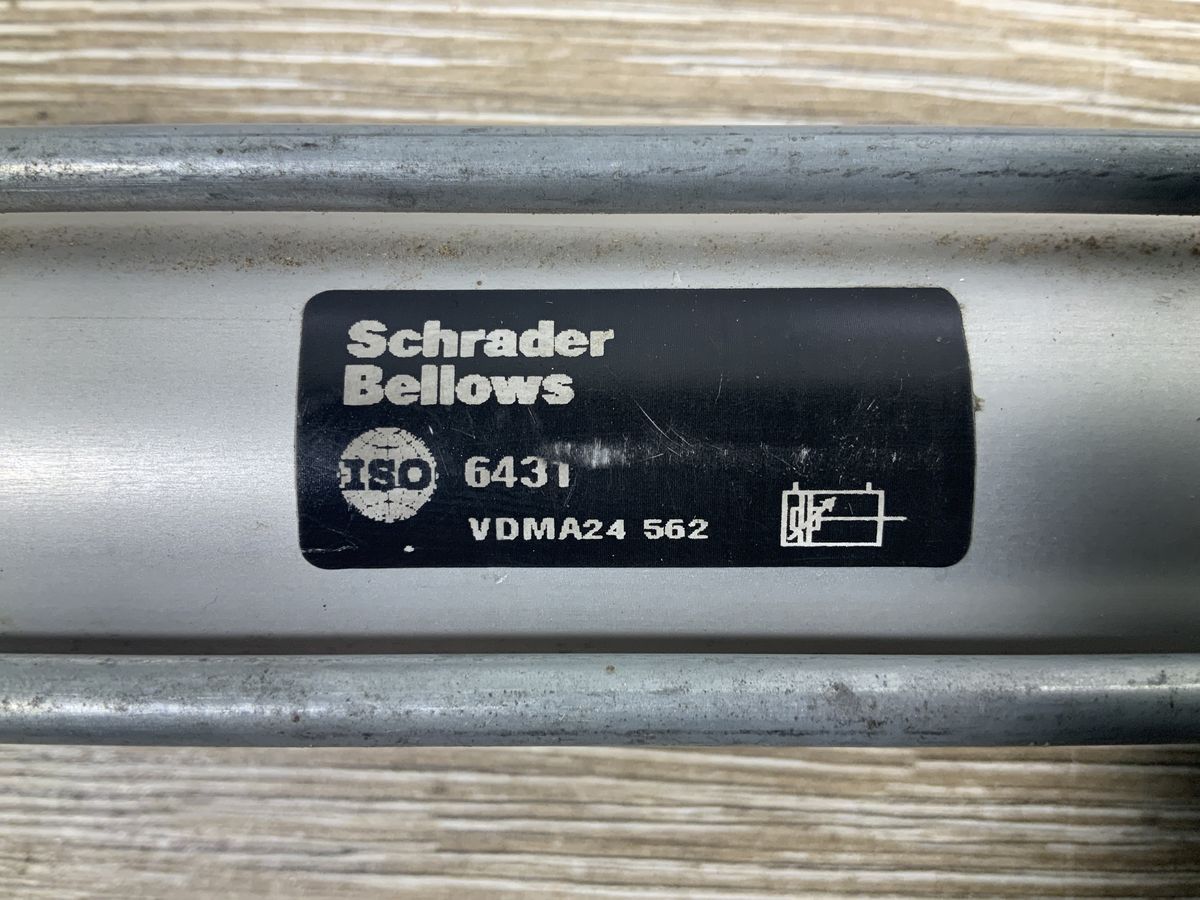

Standards ISO 6431 / VDMA 24562
×
