Kontaktor
finder 22.34.0.024.4320
SKU: 25008
På lager
Garantiinformation
Vigtigt: All warranties are our own warranties and do not cover factory or manufacturer warranties.

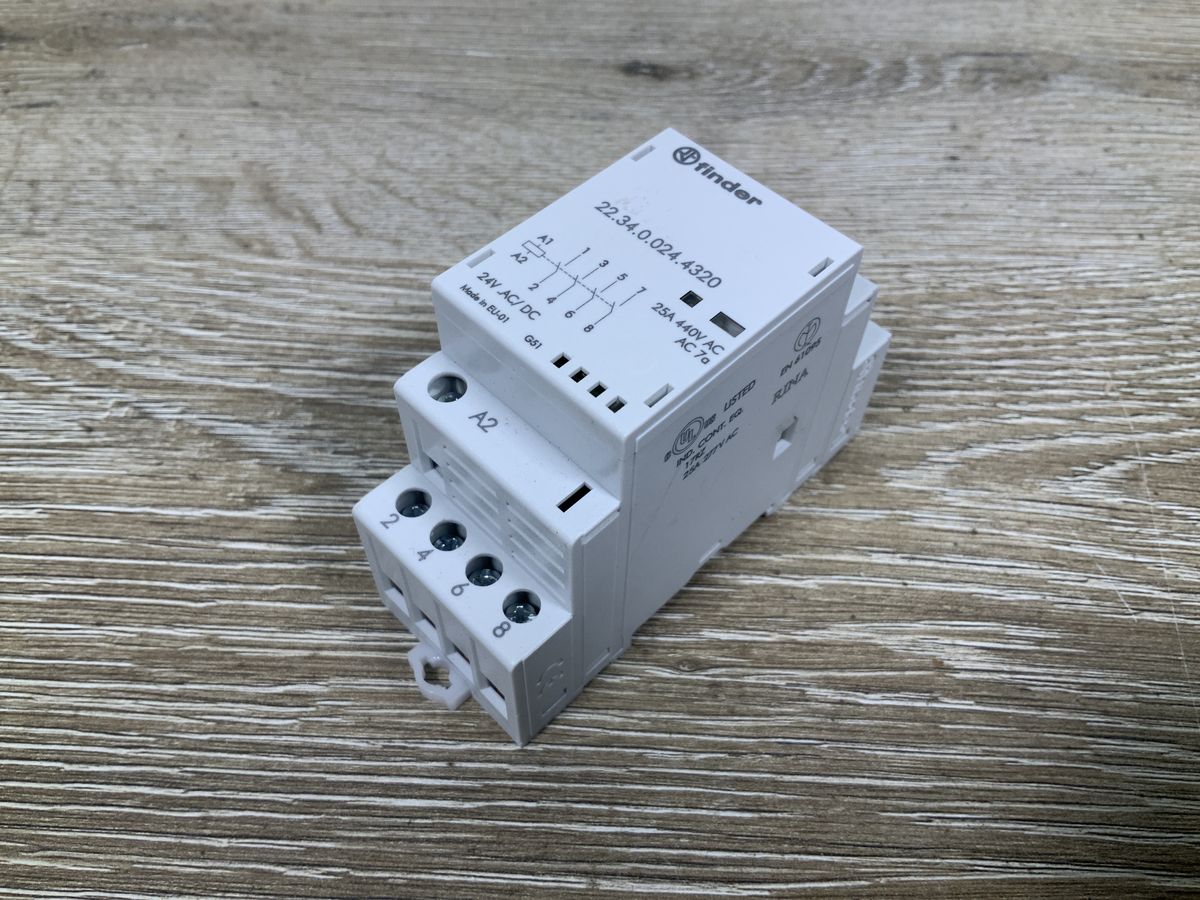

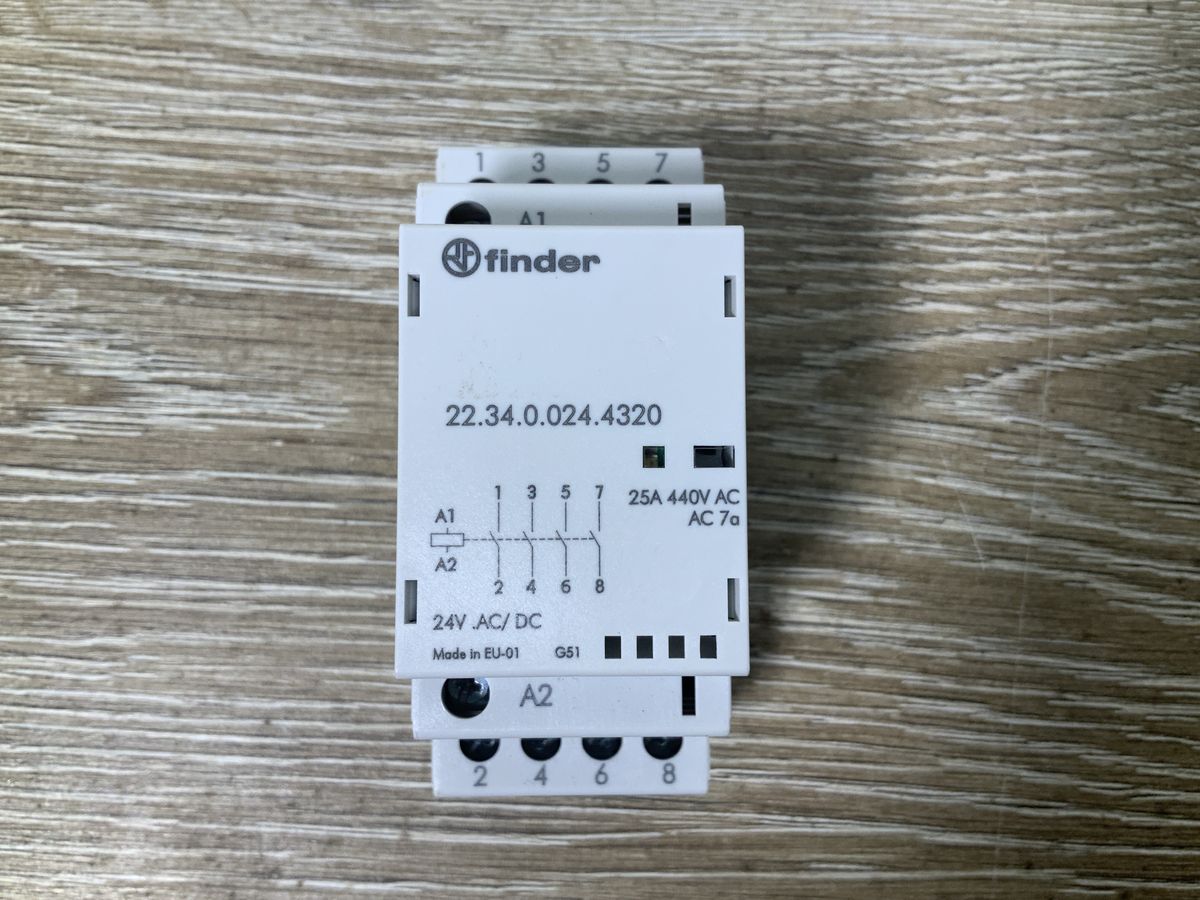

The Finder 22.34.0.024.4320 is a 4-pole DIN rail modular contactor designed for switching industrial and commercial electrical loads. It features a contact rating of 25 A at 440 V AC (AC-7a) with four normally open (4 NO) main contacts and a 24 V AC/DC control coil. Equipped with an LED status indicator and mechanical flag, it mounts on standard 35 mm DIN rail in control cabinets and distribution panels.
Specifications – 22.34.0.024.4320
| Parameter | Specification |
|---|---|
| Contact Configuration | 4 NO (4PST-NO) |
| Rated Current | 25 A |
| Rated Operating Voltage | 440 V AC |
| Control Coil Voltage | 24 V AC/DC |
| Utilization Category | AC-7a |

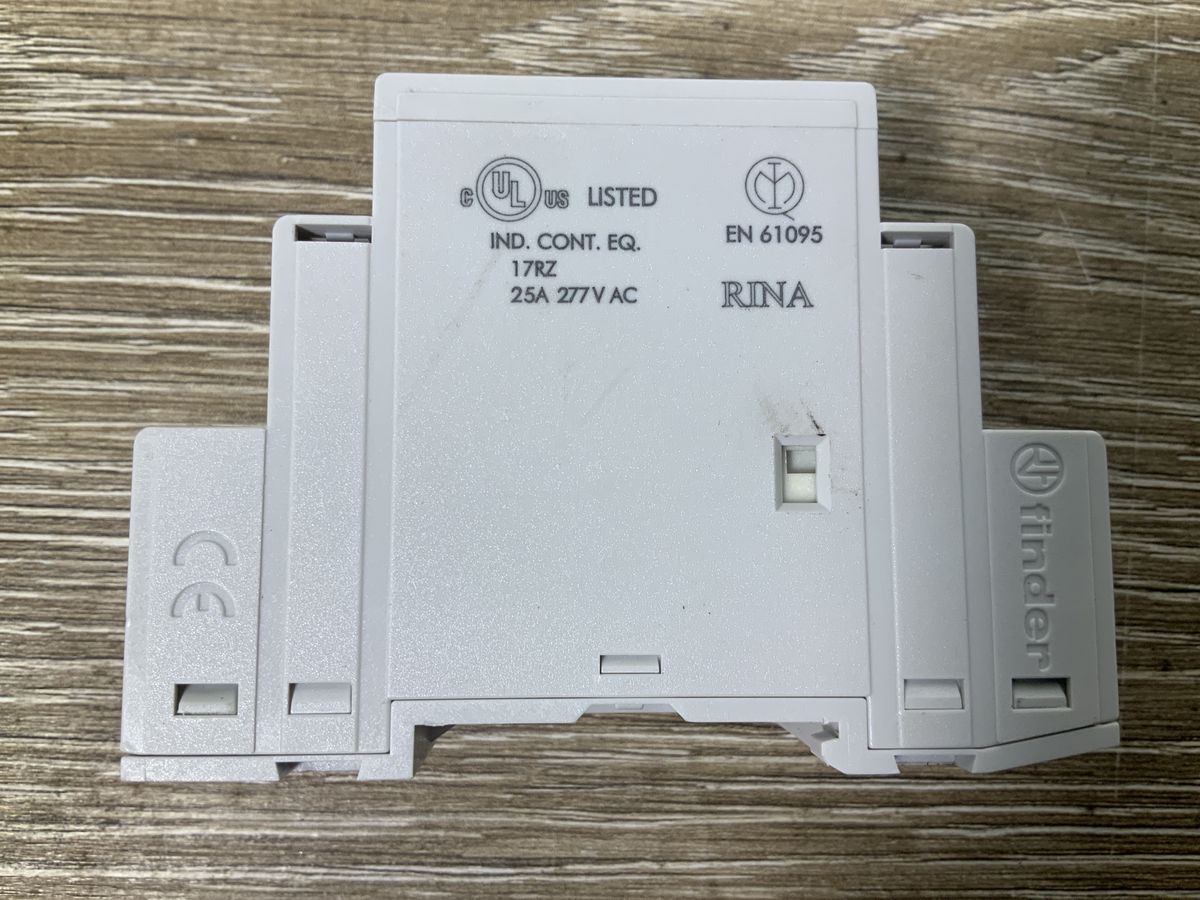

| Standard | EN 61095 |
| Part Number | 22.34.0.024.4320 (datasheet) |
| Manufacturer | Finder (datasheet) |
| Product Type | Modular Contactor (Series 22) (datasheet) |
| Contact Material | AgSnO2 (datasheet) |
| Coil Voltage | 24 V AC/DC (datasheet) |
| Coil Operating Range | 19.2...26.4 V AC/DC (datasheet) |
| Switching Power AC3 | 4 kW (datasheet) |
| Switching Current AC3 | 10 A (datasheet) |
| Max Incandescent Lamp Load | 2000 W (datasheet) |
| Max Compensated Fluorescent Lamp Load | 500 VA (datasheet) |
| Dimensions (W x H x D) | 35 mm x 84 mm x 56.5 mm (datasheet) |
| Weight | 0.168 kg (datasheet) |
| Mounting Type | 35 mm DIN rail (EN 60715) (datasheet) |
| Protection Category | IP 20 (datasheet) |
| Status Indicators | Mechanical indicator + LED (datasheet) |
×
![]()
